| Part Number | Description | Quantity | Additional Notes | Photo | Left or Right Hand Steering | Left or Right Hand | Appears in Stanpart Hardware Cat? |
|---|---|---|---|---|---|---|---|
| 214789 | Jack Shaft Idler Shaft in Parts Book Index |
1 |  |
0 | |||
| 147907 | Chainwheel Guide | 1 | |
LH | 0 | ||
| 149787 | Chainwheel Pin | 2 | □ Need to Check Quantitiy 1 only? |
|
0 | ||
| 149789 | Chainwheel Assembly Cawshaft | 1 | |
0 | |||
| 143445 | Cam Bolt Lock Plate - shaft Timing Chain Wheels. | 1 | □ Need to Check Quantitiy 1 only? Book Says 2 |
|
0 | ||
| 156056 | Bolt Lock Plate - Camshaft Timing Chain Wheels. Missing from Index in Parts Book |
1 | □ Need to Check Quantitiy 1 only? Book Says 2. |
|
0 | ||
| 212958 | Timing Chain - LH - Missing from Parts Book Index | 1 | |
LH | 0 | ||
| 148115 | Chainwheel Guide | 1 | |
LH | 0 | ||
| WL208 | Spring Washer ID 5/16" OD 0.58" | 2 | □ Lower Timing Chain Guide to Block |
|
1 | ||
| 149788 | Nut | 1 | □ Same as HN2008 (Cam Shaft Bearing Clamp Nut) |
|
0 | ||
| 214930 | Chainwheel Support Bracket LH | 1 | |
LH | 0 | ||
| 143257 | Crankshaft Chainwheel | 1 | |
0 | |||
| HU805 | Hex Head Setscrew 5/16" UNF X 5/8" | 2 | □ Lower Timing Chain Guide to Block |
|
1 | ||
| HB709 | Bolt 1/4" UNF x 1 1/8" | 1 | □ Timing Chain Tensioner to Block |
 |
1 | ||
| WL207 | Spring Washer ID 1/4" OD 0.58" | 1 | □ Timing Chain Tensioner to Block |
|

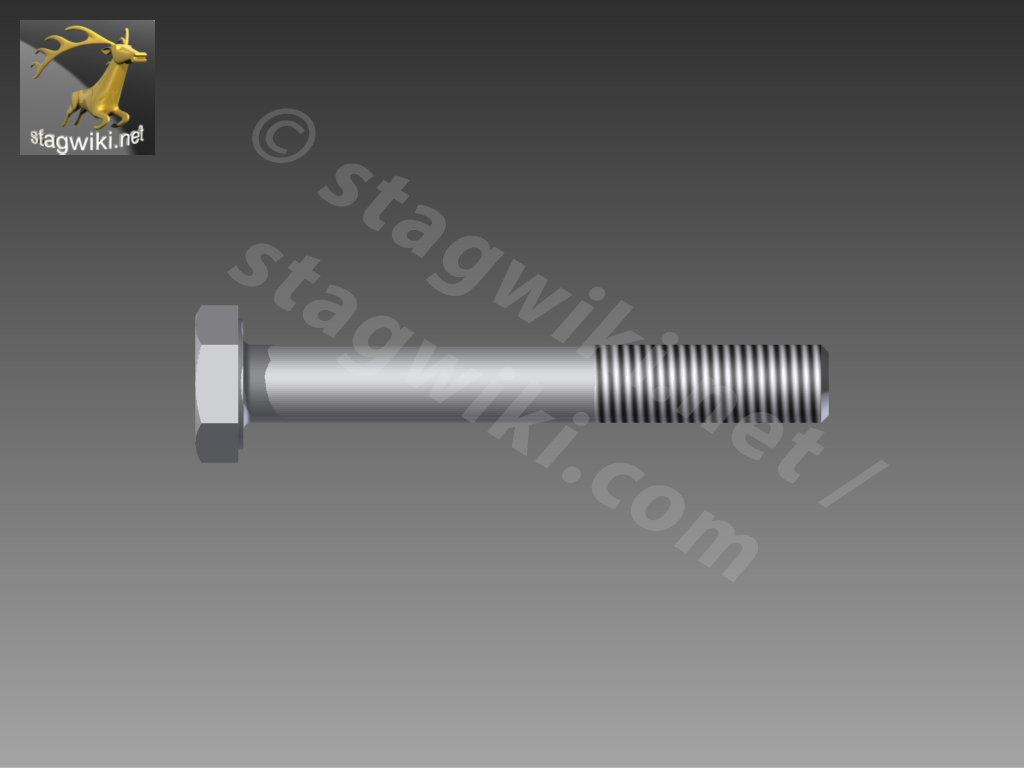

1 | ||
| 148008 | Hex Head Setscrew | 1 | |
0 | |||
| HB715 | Bolt 1/4" UNF x 1 7/8" | 1 | □ Timing Chain Tensioner to Block |
 |
1 | ||
| WL207 | Spring Washer ID 1/4" OD 0.58" | 1 | □ Timing Chain Tensioner to Block |
|
1 | ||
| 151089 | Timing Chain Tensioner | 1 | |
0 | |||
| 151277 | Chain Adjuster Back Plate | 1 | |
0 | |||
| 144895 | Jack Shaft Chainwheel | 1 | |
0 | |||
| 148009 | Tab Washer - Jackshaft Chainwheel Bolt | 1 | |
0 | |||
| DP408 | Plain Dowel 1/4" Diam x 1/2" | 1 | □ Dowel to End of Jackshaft (214789) |
|
1 | ||
| WP8 | Plain Light Washer ID 5/16" OD 0.69" | 2 | □ Upper Timing Chain Guide to Block |
|
1 | ||
| 143139 | Jack Shaft Keep Plate | 1 | |
0 | |||
| 144281 | Countersunk Setscrew | 2 | □ Parts Book only Shows 1 Required |
|
0 | ||
| HU704 | Hex Head Setscrew 1/4" UNF X 1/2" | 2 | □ Need to Check Quantity Parts book states 4 |
|
1 | ||
| 145275 | Crankshaft Timing Chain Wheel Shim 0.004" | 0 | □ Quantity as Required. |
|
0 | ||
| 145276 | Crankshaft Timing Chain Wheel Shim 0.006" | 0 | □ Quantity as Required. |
|
0 | ||
| HU805 | Hex Head Setscrew 5/16" UNF X 5/8" | 2 | □ Upper Timing Chain Guide to Block (Guessed - Not in Parts Book) |
|
1 |
