519579/D - 02-02 |
Part Number | Description | Quantity | Additional Notes | Photo | Left or Right Hand Steering | Left or Right Hand | Appears in Stanpart Hardware Cat? |
---|---|---|---|---|---|---|---|
32307 | Oil Dipstick Felt Washer | 1 | ![]() |
0 | |||
147712 | Dipstick Assembly | 1 | ![]() |
0 | |||
DP306 | Plain Dowel 3/16" Diam x 3/8" | 1 | ![]() |
1 | |||
150002 | Engine Oil Dipstick Tube | 1 | ![]() |
0 | |||
144648 | Core Plug | 2 | ![]() |
0 | |||
145022 | Water Pump Spindle Bush | 1 | ![]() |
0 | |||
PU804 | Core Plug - Screwed 5/16" UNF x 1/2" | 1 | □ Quantity As Required |
![]() |
1 | ||
DP408 | Plain Dowel 1/4" Diam x 1/2" | 5 | ![]() |
1 | |||

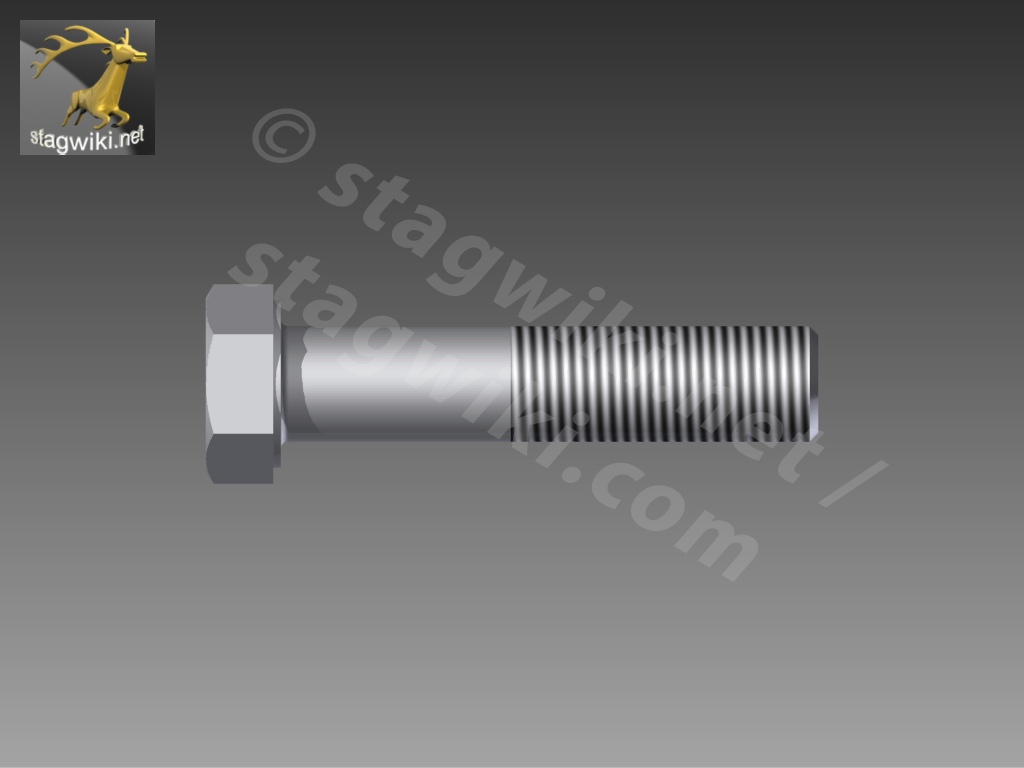

BH914 | Hex Head Bolt 3/8" x NF 1 3/4" | 1 | ![]() |
1 | |||
159784 | Oil Pressure Indicator Switch From LE20,000 |
1 | ![]() |
0 | |||
121398 | Oil Pressure Indicator Switch Up To LE20,000 |
1 | ![]() |
0 | |||
WP45 | Plain Light Washer ID 3/8" OD 3/4" | 1 | ![]() |
1 | |||
214020 | Oil Transfer Housing | 1 | ![]() |
0 | |||
144958 | Oil Transfer Housing Large 'O' Ring | 1 | ![]() |
0 | |||
144959 | Oil Transfer Housing Small 'O' Ring | 1 | ![]() |
0 | |||
144688 | Core Plug | 1 | ![]() |
0 | |||
155796 | Core Plug 1.655" Dia (A/R) | 1 | □ Parts book indicates A/R for Quantity |
![]() |
0 | ||
153972 | Core Plug 1.055" Dia (A/R) | 1 | □ Parts book indicates A/R for Quantity |
![]() |
0 | ||
154561 | Core Plug | 1 | □ Is this the Block Drain Plugs? If so two required. |
![]() |
0 | ||
WF511 | Fibre Washer ID 1/2" x OD 3/4" | 2 | □ Parts book Indicates 1. Only fitted to Early cars. |
![]() |
1 | ||
129077 | Engine Block Drain Tap | 2 | □ Parts book Indicates 1. Only fitted to Early cars. |
![]() |
0 | ||
149438 | Cylinder Liner | 255 | □ Parts book states 8, but A/R as far as I know. |
![]() |
0 | ||
149080 | Stud | 10 | □ Parts book Indicates 20 No. Required |
![]() |
0 | ||
HB1021 | Bolt Hex Head 7/16" UNF x 2 5/8" | 10 | ![]() |
1 |
Notes |
---|
No notes found for this page |
